DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine

DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine

  • DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine

The DRLQ series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site bonding of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it’s used for the vulcanized bonding of the belts mixed with canvas, nylon, steel cord, etc., and it’s also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.

INQUIRY

DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine

Quick Details

  • Condition: New
  • Type: Vulcanizer
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FUDA or OEM
  • Model Number: DRLQ-1400×1000
  • Voltage: 220V~660V
  • Power(W): 27.3KW
  • Dimension(L*W*H): 2300x1000x725mm
  • Weight: 1185kg
  • Certification: ISO9001:2008/CE/SGS
  • Warranty: 14 Months
  • After-sales Service Provided: Overseas third-party support available
  • Main material: aluminium alloy
  • Application: Conveyor Belt Hot Vulcanizing Joint
  • Suitable belt width: 1400mm
  • Vulcanizing temperature: 145+/-3 ℃
  • Vulcanizing pressure: 1.0-2.0Mpa or customized
  • Warming up time: less than 25 minutes
  • Cooling system: Inner Water Cooling
  • Cooling time: 15 minutes

Packaging & Delivery

Packaging Details: seaworthy wooden case (steel framework) or customized
Delivery Detail: 7~10 days



DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site bonding of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it’s used for the vulcanized bonding of the belts mixed with canvas, nylon, steel cord, etc., and it’s also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on. In a word, as long as the place is without explosive and corrosive gas, the vulcanizer can be used there.

The main parts of this vulcanizer is made of aluminum alloy, which results in smaller volume, lighter weight, and easier carrying. And the electrothermal components are of multilayer structure, connected by three-phase electric circuit at voltage 380V (or 660V). It works stably and reliably on small current. The heating plate shell is made of aluminum alloy, with low thermal inertia and directivity, can make better surface heating temperature uniformity. During the working time of the heating plate, from warming to vulcanizing, the time and temperature are both controlled by the control box. It ensures low energy consumption, high efficiency, convenient operation, reliable work, and good vulcanization quality. The type of the pressure device is hydraulic pressure plate, its structure is simple and the maintenance is convenient. It can make large and even pressure during vulcanization.
Product Description

Product Application

DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine

The DRLQ series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site bonding of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it’s used for the vulcanized bonding of the belts mixed with canvas, nylon, steel cord, etc., and it’s also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.

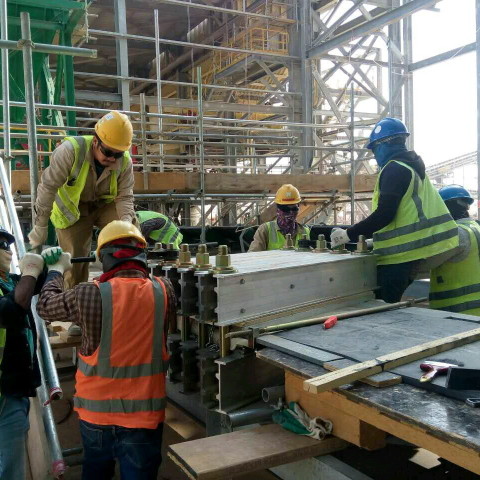

on-site splicing.jpg

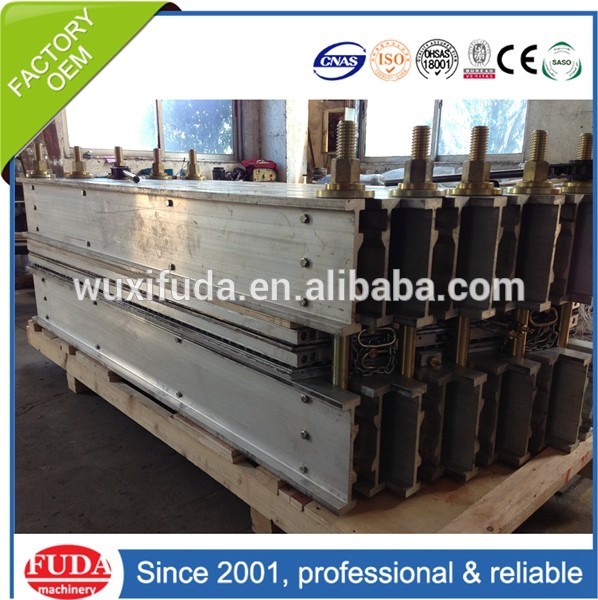

DRLQ-1400X1000 factory direct sale high quality conveyor belt vulcanising machine.jpg





Main Features

  • The main parts of this vulcanizer is made of aluminum alloy, which results in smaller volume, lighter weight, and easier carrying.
  • the electrothermal components are of multilayer structure, connected by three-phase electric circuit at voltage 380V (or 660V). It works stably and reliably on small current.
  • The heating plate shell is made of aluminum alloy, with low thermal inertia and directivity, can make better surface heating temperature uniformity.
  • During the working time of the heating plate, from warming to vulcanizing, the time and temperature are both controlled by the control box. It ensures low energy consumption, high efficiency, convenient operation, reliable work, and good vulcanization quality.
  • The type of the pressure device is hydraulic pressure plate, its structure is simple and the maintenance is convenient. It can make large and even pressure during vulcanization.

.jpg

Specifications



DRLQ-1400X830 factory direct sale high quality conveyor belt welding machine

DRLQ-1400 specifications (just for reference, can be customized)
Model number Belt width (mm) Plane dimension of heating plate (mm) External dimension of the whole machine    (L×W×H) (mm)  Power (KW) Weight (kg)
B b L L1 L2 Heaviest piece Total weight
DRLQ-1400 1400 500 1588 1690 1720 2122×500×725 13.6 65 545
670 2213×750×725 20.3 90 830
830 2242×830×725 22.6 115 955
1000 2304×1000×725 27.3 140 1185

chicun_ - .png


Technical Parameters
  • Vulcanization pressure: ≤2.0Mpa or customized
  • Vulcanization temperature: 145 °C;
  • Surface temperature difference of vulcanizing plate: ±3 °C;
  • Time for temperature rise (from normal temperature to vulcanizing temperature): 25 minutes
  • Power supply voltage: 220V to 660 V, 50/60 Hz (3 phase 4 wire)
  • Output voltage of the control box : 380V
  • Output power of the control box: 40 KW
  • Adjustable range of the temperature gauge and adjustment knob: 0 to 200 °C;
  • The time control range of the electronic time relay(“timer”) :999min (usually 0~60min)
  • The gap between upper hot plate and the lower hot plate after applying pressure: not more than 0.5 mm.
  • Fast Cooling time: 15 minutes (from 145 °C down to 70 °C or less)
  • For belt with larger splicing length, can be vulcanized by several machines working together side by side.
  • Increase, decrease and change of components and devices is available according to special requirements.
